WhisperKOOL Platinum Split Twin Wall-Mounted Wine Cellar Cooling System

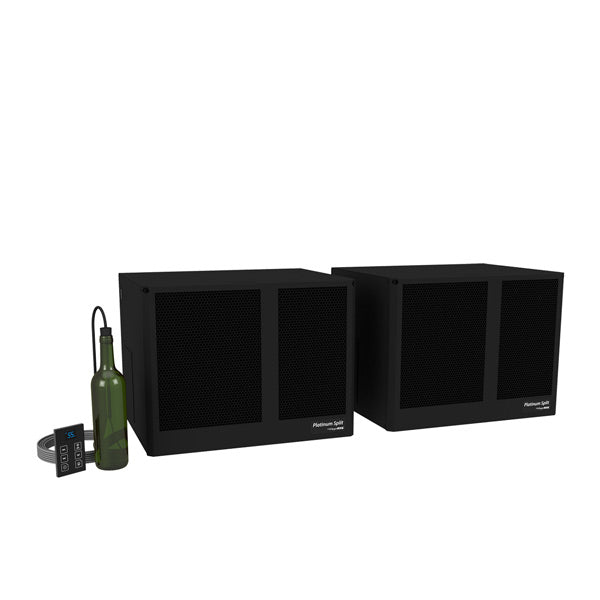

A dual-evaporator split system for large cellars up to 3,000 cu. ft. — two wall-mounted evaporators paired with remotely mounted, high-efficiency condensers for balanced, redundant cooling.
Platinum Split Twin Key Features & Benefits
Dual-System Design for Large Cellars
The Platinum Split Twin pairs two evaporators and condensers to cover cellars up to 3,000 cu. ft. with even temperature distribution — ideal for large rooms, tall ceilings, or multi-zone layouts.
220V High-Efficiency Condensers
Oversized condenser coils maintain strong cooling even in hot mechanical rooms, and the 220V high-efficiency design draws roughly 50% less power than comparable 110V units while holding a 55°F cellar.
Whisper-Quiet Operation
Large, slow-rotation fans move plenty of air while keeping the condensers around 45 dBA. Direct thermostat-cable communication eliminates pump-down cycling for smoother, quieter runtime.
Precise Digital Control

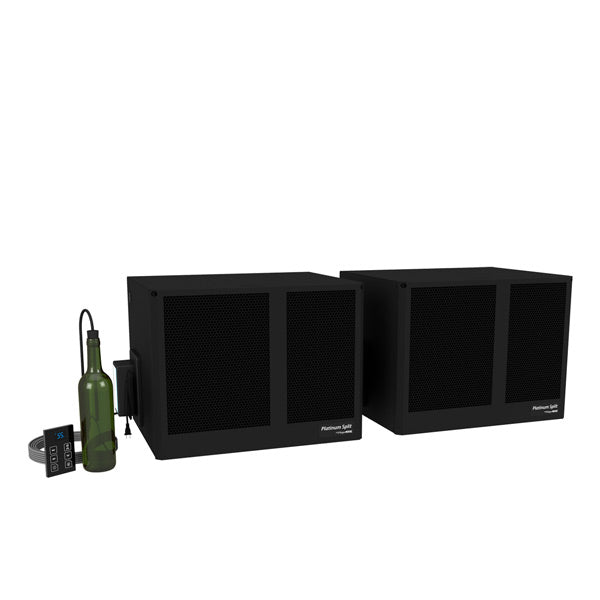

Advanced digital displays (50-ft cables) work with liquid-temperature-measuring bottle probes, so the thermostats read the true temperature of your wine rather than the air.
Flexible Placement

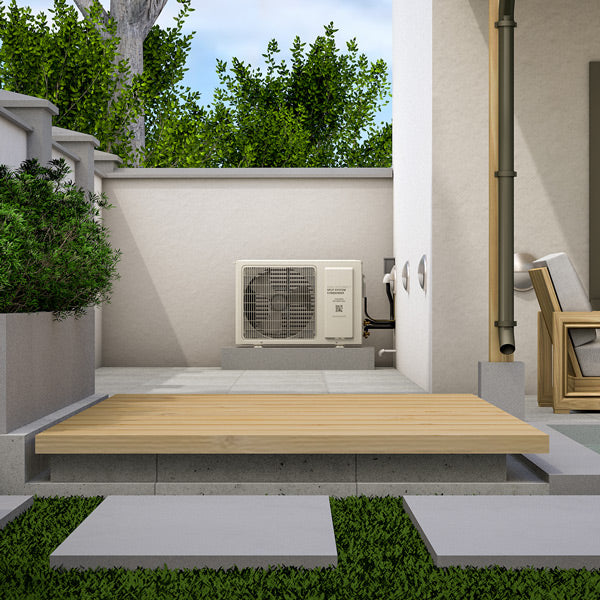

Each condenser can be located up to 100 line feet from its evaporator, giving you room to place equipment in a mechanical room, basement, garage, or rooftop.
Technical Specifications
| Specification | Details |
|---|---|
| Max Cellar Size | Up to 3,000 cu. ft. (fully insulated cellar with a proper vapor barrier) |
| Cooling Capacity | 7,368–7,779 BTU/h sensible at 85°F condenser air intake (220V H.E.); up to 9,417 BTU/h total at 60°F |
| Ambient Operating Range | Maintains a 55°F cellar with H.E. condensers in ambient temperatures from -20°F to 110°F |
| Refrigerant | R-134a / R-513a |

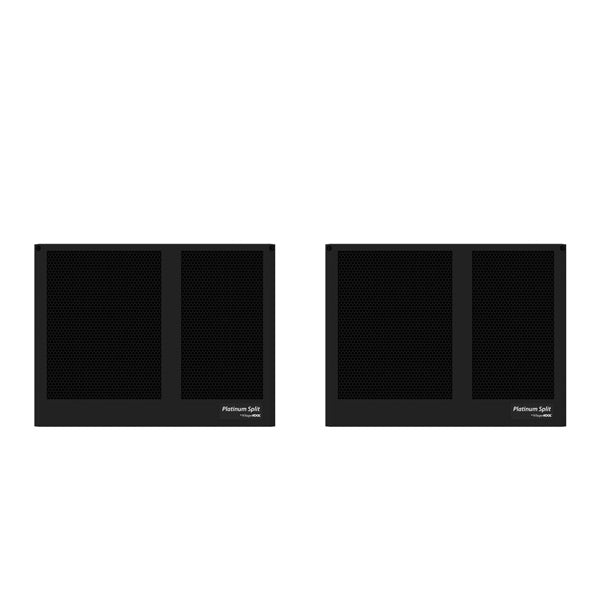

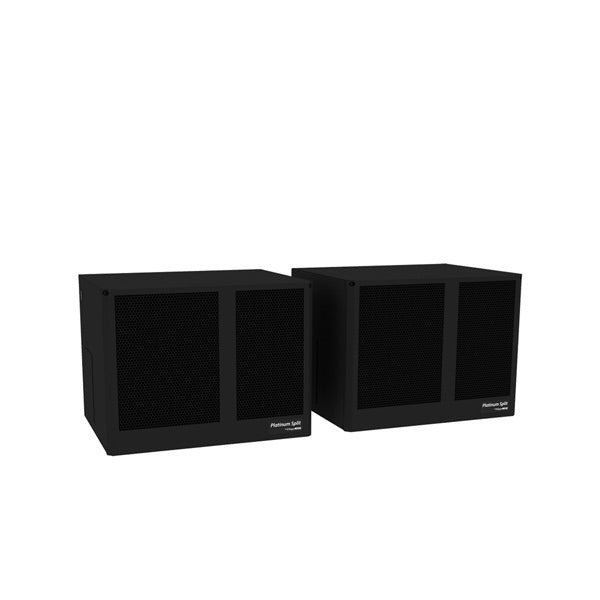

| Evaporators | Two units, 16.1"L x 20.5"W x 15.5"H each · 270 CFM each · 120V, 15-amp circuits · 2.48 A primary / 2.2 A secondary · 54 lbs each |

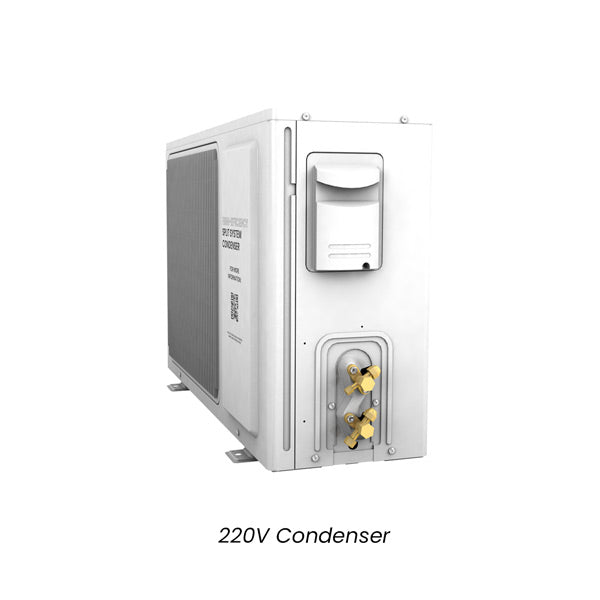

| Condensers – 220V Standard H.E. | 31.18"L x 10.75"W x 21.18"H · 210–230V, 15-amp dedicated circuits · 1.0 HP · 4.89 running amps · 64 lbs (per unit) |
| Line Set (not included) | Liquid line 1/4" OD; suction line 1/2" OD under 50 ft, 5/8" OD over 50 ft |
| Drain Line | 1/2" ID clear plastic tubing (not provided) |
| Installation Distances | Each condenser up to 100 line ft from its evaporator |
| Thermostat | Advanced digital displays (50-ft cables) with liquid-temperature-measuring bottle probes |
| Sound Level | Condensers approx. 45 dBA (220V H.E.) |
| Condenser Options | 220V Standard H.E. (specs above) or 110V H.E. OMEGA — select at checkout |
Where It Fits in the Range
The Platinum Split Twin is the largest wall-mounted unit in the Platinum Split family, rated for cellars up to 3,000 cu. ft. For a fully concealed installation of the same capacity, see the Platinum Split Twin Ducted. Single-evaporator options include the Platinum Split 4000 and 8000. Always confirm sizing with a heat-load calculation before ordering.
A Note on Sizing
The cellar-size rating assumes a fully insulated room with a complete vapor barrier. Design factors such as glass walls, stone or concrete, high ambient temperatures, frequent door openings, or in-cellar lighting can increase the cooling load. When in doubt, choose the next capacity up — an undersized unit can run continuously, fail to reach temperature, and is not covered under warranty. We're happy to help you run the numbers.
Installation & Setup
Professional installation required: WhisperKOOL split systems must be installed by a qualified, licensed HVAC/R technician. Installation by anyone else will void the warranty.
Pre-Installation Requirements
- Fully insulated cellar with a complete vapor barrier
- Evaporators: dedicated 120V, 15-amp circuits
- Condensers: dedicated 220V, 15-amp circuits (or 110V for the OMEGA option)
- Line sets sized per run length (not included)
Placement & Distances

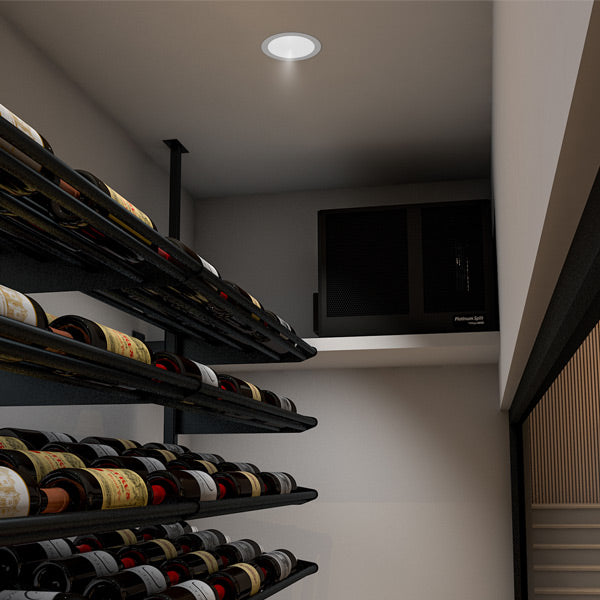

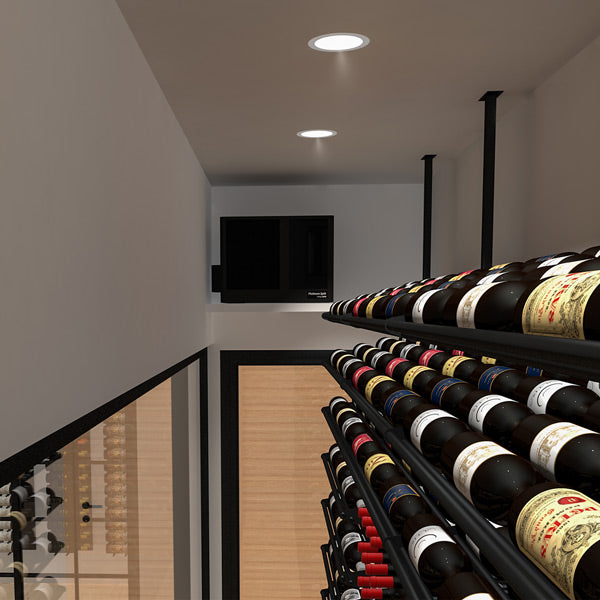

- Evaporators mount on the cellar wall for balanced airflow
- Each condenser up to 100 line ft from its evaporator

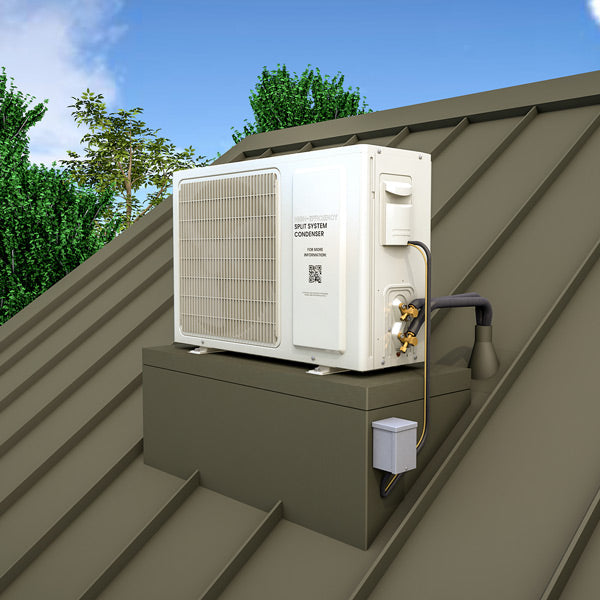

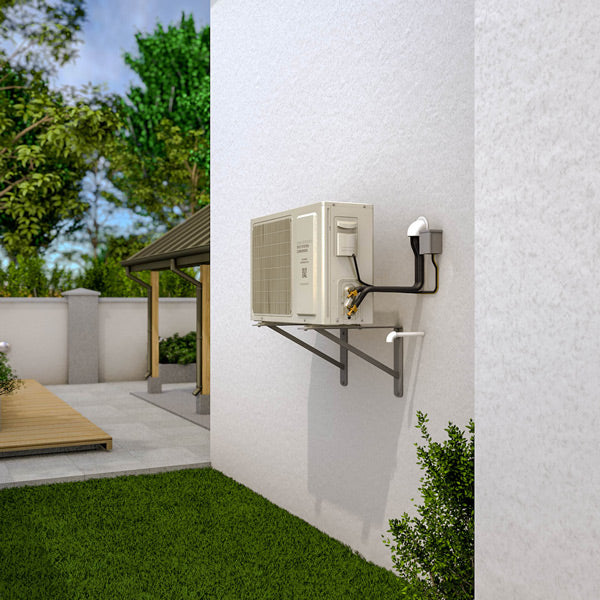

- Condensers can sit in a mechanical room, basement, garage, or rooftop
- Provide clear airflow around each condenser
- Route 1/2" ID drain lines from the evaporators
Cellar Design Best Practices
- Maintain consistent insulation and seal all air leaks
- Install a properly weatherstripped cellar door
- Complete the vapor barrier on the warm side of the insulation
- Position evaporators for even coverage of a large room
Maintenance
- Keep condenser coils clean and clear of debris
- Check the digital controllers and bottle probes periodically
- Inspect the drain lines for free flow
- Schedule an annual professional inspection
