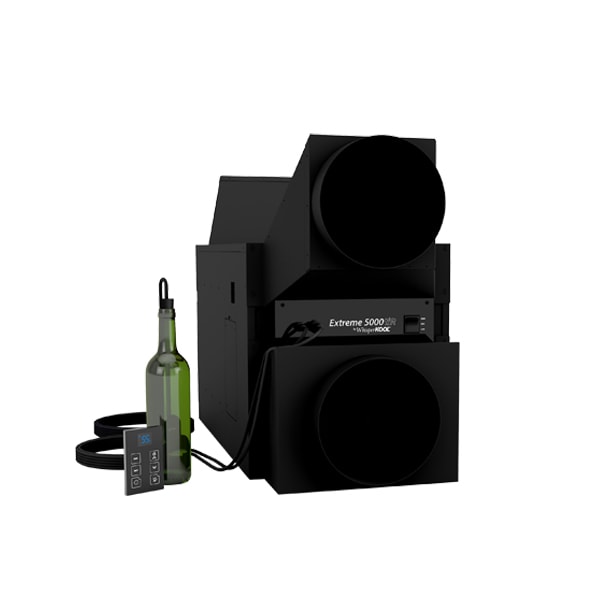

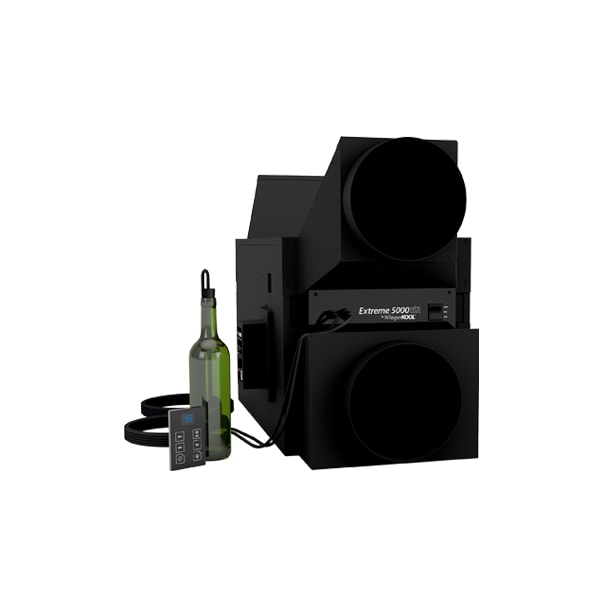

WhisperKOOL Fully Ducted Extreme 5000tiR Wine Cellar Cooler
A fully ducted, self-contained cooler with variable-speed fans for cellars up to 1,250 cu. ft. β mounted out of sight and ducted into the cellar for quiet, concealed cooling.
Fully Ducted Extreme 5000tiR Key Features & Benefits
Fully Ducted Design

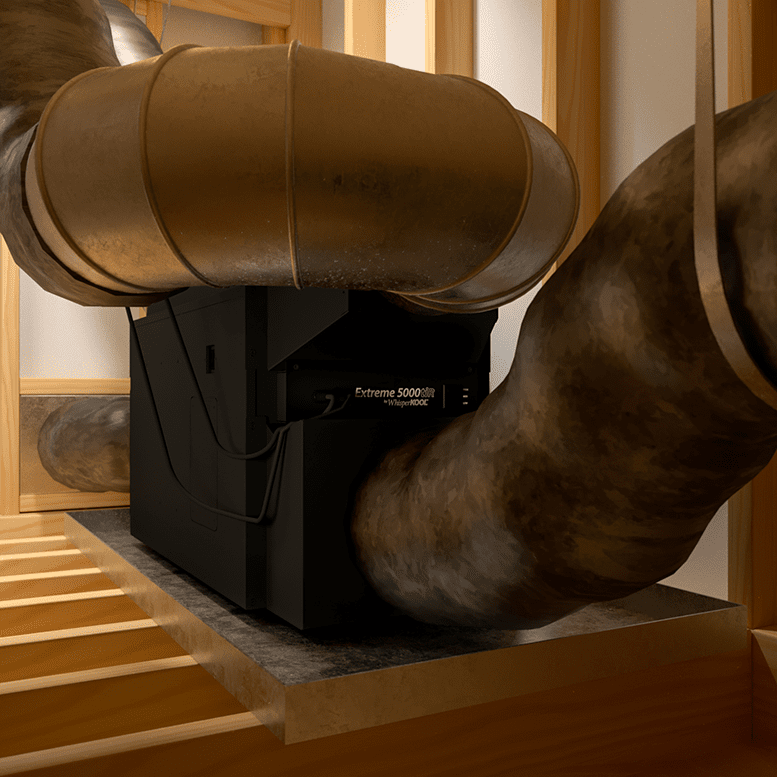

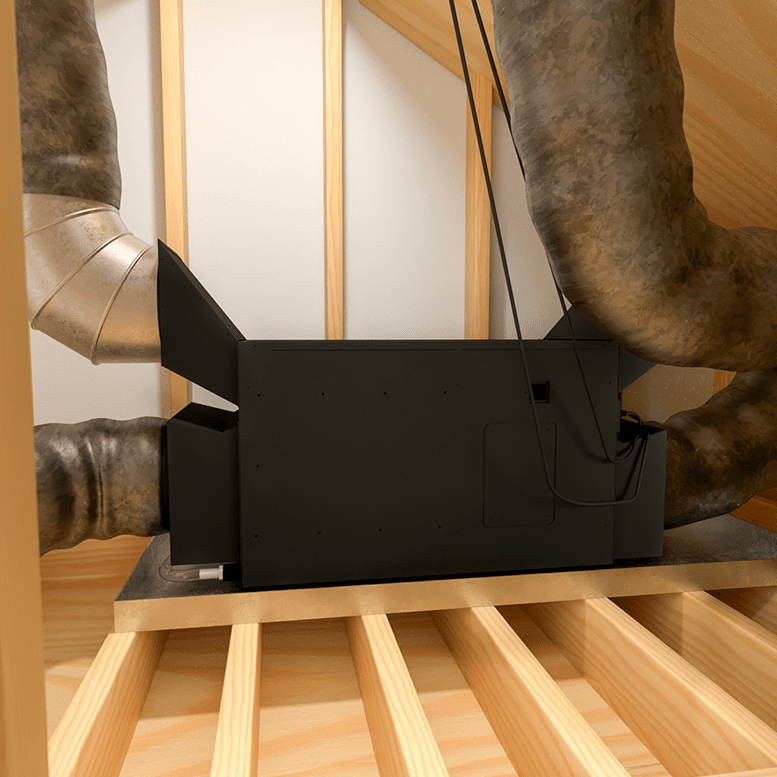

The tiR adds duct plenums to WhisperKOOL's most powerful self-contained platform, so the unit can be mounted out of sight (attic, closet, or mechanical room) and ducted into the cellar for a clean, concealed look.
Variable-Speed Fan Technology
Variable-speed fans modulate to match demand, lowering noise and improving efficiency versus fixed-speed systems.
Liquid-Temperature Bottle Probe
The digital control reads the true temperature of your wine, not just the air, keeping the cellar at proper aging conditions.
Dual-Refrigerant Ready
Built for R-134a / R-513a, aligning with current lower-GWP refrigerant standards.
Flexible Power
Runs on a standard 115V, 20-amp dedicated circuit (230V subject to availability).
Technical Specifications
| Specification | Details |
|---|---|
| Max Cellar Size | Up to 1,250 cu. ft. (properly sealed and insulated, min. R-19) |
| Cooling Capacity | 3,794 BTU/h at 85Β°F condenser air intake |
| Compressor | 1.5 HP |
| Refrigerant | R-134a / R-513a |
| Dimensions | 39.5"L x 22.5"H x 14.25"W (with duct plenums) |
| Weight | 115 lbs |
| Power | 115V, 20-amp dedicated circuit required (230V subject to availability) |
| Running Amps | 9 amps |
| Drain Line | 1/2" ID clear plastic tubing |
| Temperature Differential | Maintains a 55Β°F cellar with condenser air intake up to 110Β°F |
| Fans | Variable-speed |
Where It Fits in the Range
The fully ducted Extreme tiR line covers cellars up to 800 cu. ft. (3500tiR), 1,250 cu. ft. (5000tiR), and 2,000 cu. ft. (8000tiR). A through-the-wall version of each is also available. Confirm sizing with a heat-load calculation before ordering.
A Note on Sizing
The cellar-size rating assumes a fully insulated room with a complete vapor barrier. Design factors such as glass walls, stone or concrete, high ambient temperatures, frequent door openings, or in-cellar lighting can increase the cooling load. When in doubt, choose the next capacity up β an undersized unit can run continuously, fail to reach temperature, and is not covered under warranty. We're happy to help you run the numbers.
Installation & Setup
The Extreme tiR is a self-contained, fully ducted unit β one piece, no separate condenser. Plan supply and return duct runs, a dedicated circuit, and a ventilated location before installation.
Pre-Installation Requirements
- Fully insulated cellar with a complete vapor barrier (min. R-19)
- Dedicated 115V, 20-amp circuit
- Ventilated location for the unit (attic, closet, mechanical room)
- Supply and return duct runs planned
- 1/2" ID drain line routed to a suitable drain
Placement & Airflow
- Mount the unit out of the cellar and duct air in
- Keep the exhaust/condenser side ventilated and unobstructed
- Do not recirculate exhaust air back to the intake
- Allow service clearance around the unit
Cellar Design Best Practices
- Maintain consistent insulation and seal all air leaks
- Complete the vapor barrier on the warm side of the insulation
- Install a properly weatherstripped cellar door
- Plan rack layout for good air circulation
Maintenance
- Keep condenser coils clean and clear of debris
- Check the digital controller and bottle probe periodically
- Inspect the drain line for free flow
- Schedule an annual professional inspection
Product Documentation & Resources
Documentation & Resources
Warranty Coverage
Help & Support
Frequently Asked Questions
Manuals & documentation: Find your owner's manual β select the version matching your unit's voltage/condenser type and purchase date.
