Quick Answer: How Do You Maintain a Wine Cellar Cooling Unit?
Most wine cellar cooling problems come from three things: dirty coils, clogged drain lines and neglected filters. All three are prevented with a simple schedule. WhisperKOOL's owner's manuals call for monthly checks, drain-line cleaning every six weeks on most models, quarterly coil and filter cleaning and an annual inspection, ideally done by a licensed HVAC-R technician in the spring or fall.
Self-contained systems such as the WhisperKOOL SC PRO and Slimline LS are largely owner-maintainable. Split systems such as the Platinum Split and Quantum need a technician for condenser and refrigerant service.
This guide gives you the schedule for every WhisperKOOL series, step-by-step cleaning instructions, a troubleshooting table and the alarm codes your controller may show.
A wine cellar cooling unit is the only thing standing between a valuable collection and a warm room. WhisperKOOL designs its systems to hold a cellar at 55°F for years, but every unit depends on clean airflow and a clear drain to do it. This guide, written by the cooling specialists at WineCellarCoolingUnits.com, an authorized WhisperKOOL dealer, turns WhisperKOOL's official owner's manuals and maintenance checklists into one practical routine you can follow.
Why Does Wine Cellar Cooling Unit Maintenance Matter for Your Wine?
Stable Temperature Protects Aging Chemistry
WhisperKOOL cites 55°F (13°C) as the industry standard for wine storage and stresses that stability matters more than precision: "A steady 58°F is far better than a cellar swinging between 50°F and 65°F." Temperature swings make wine expand and contract in the bottle, pushing air in and out past the cork and speeding up oxidation.
Warmth also speeds up aging. In a study published in Metabolomics (Arapitsas et al., 2014), Sangiovese wines stored in typical house conditions developed about four times faster than the same wines stored in a cellar. A cooling unit struggling with a dirty coil lets the cellar drift warmer and cycle harder, which is exactly the instability that shortens a wine's life.
Clean Coils and Drains Protect Humidity
Most cellars are designed for about 50–70% relative humidity, according to WhisperKOOL. As a unit cools, moisture condenses on the evaporator coil and leaves through the drain line. When that drain clogs, water backs up, overflows or freezes on the coil. WhisperKOOL notes that uncontrolled moisture can raise system runtime by 10–20%, which wears components and raises energy use.
Maintenance Protects the Equipment and the Warranty
WhisperKOOL puts it simply: "Maintaining your cooling unit is less costly than repairing or replacing due to premature failure," and "a well-maintained system is more energy efficient." The WhisperKOOL limited warranty also makes routine cleaning the owner's responsibility. Its maintenance requirements say the end user must clean dust, lint and debris from the intake grilles, because failing to do so "will restrict the airflow and may affect the Product's ability to function properly," and that the drain tube "must also be checked and kept clean and free of debris and mold."
A cooling unit moves heat by moving air across two coils. Dust on the condenser coil traps heat inside the system. On the SC PRO, the controller raises a "COH" alarm when the condenser coil passes 125°F, and the unit stops cooling. The first fix WhisperKOOL lists is to check the condenser coil and clean it.
Before You Start: What Can You Maintain Yourself?
Always disconnect power to the cooling unit before performing maintenance. WhisperKOOL prints this warning on every maintenance schedule.
- Self-contained units (SC PRO, Slimline LS, Extreme, Phantom and the 2500 Cabinet): owners can handle the routine tasks, including coil vacuuming, drain-line brushing, filter cleaning and bottle-probe care.
- Split systems (Platinum Split, Ceiling Mount, Quantum and Blow-Through): owners can keep the evaporator, drip pan and outdoor area clean. WhisperKOOL's checklists state it is "strongly advised that you have a licensed HVAC-R technician perform this maintenance," because it includes refrigerant pressures, superheat and subcooling, and electrical checks.
What Tools Do You Need for Wine Cooling Unit Care?
- A vacuum with a soft brush attachment
- The drain-line brush supplied with your unit
- Warm water for washable filters, and a towel
- Pan tabs, only for models that call for them (see Step 2)
- Your model's owner's manual, available in our WhisperKOOL manuals and documentation library

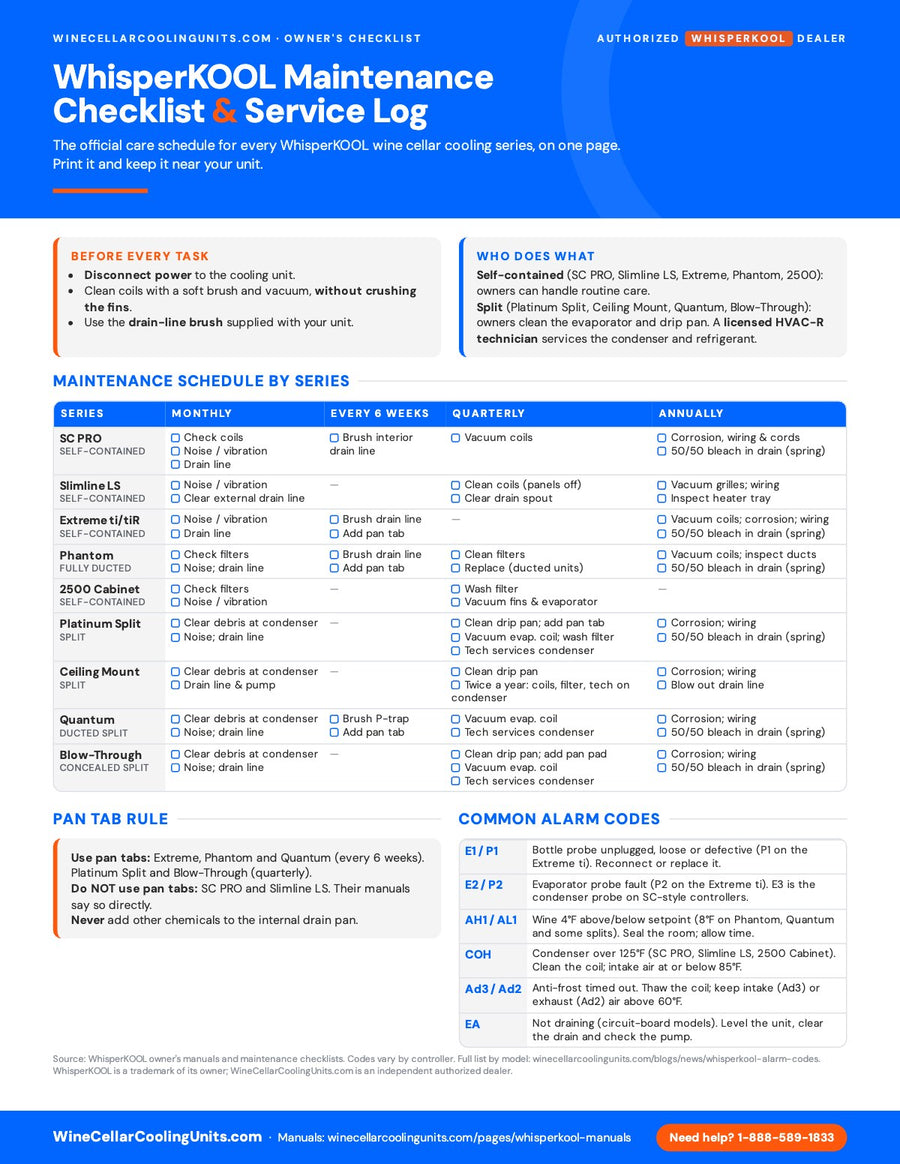

WhisperKOOL Maintenance Schedule by Series
The table below summarizes the maintenance schedule printed in each WhisperKOOL owner's manual. Intervals differ by series, so follow the row for your system.
| WhisperKOOL series | Monthly | Every 6 weeks | Quarterly | Annually |
|---|---|---|---|---|
| SC PRO | Check coils; listen for noise or vibration; check drain line | Brush the interior drain line | Vacuum coils | Inspect for corrosion; check wiring and cords; 50/50 bleach solution in drain line each spring (no pan tabs) |
| Slimline LS | Noise check; check and clear external drain line | — | Remove panels and clean coils; clear the drain spout | Vacuum front and rear grilles; check wiring; inspect condensate heater tray (no pan tabs) |
| Extreme ti/tiR | Noise check; check drain line | Brush drain line; add a pan tab | — | Vacuum coils; inspect for corrosion; check wiring; bleach solution in external drain line each spring |
| Phantom | Check filters; noise check; check drain line | Brush drain line; add a pan tab | Clean filters; replace filters on ducted units | Replace worn filters; vacuum coils; inspect ductwork for cracks or leaks; bleach solution each spring |
| 2500 Cabinet | Check filters; noise check | — | Wash filter; vacuum condenser fins and evaporator coil | — |
| Platinum Split | Clear debris around the condensing unit; noise check; check drain line | — | Clean drip pan; vacuum evaporator coil; wash filter; technician services condenser; add a pan tab | Inspect for corrosion; check wiring; bleach solution in drain line each spring |
| Ceiling Mount | Clear debris around condensing unit; confirm drain line and condensate pump work | — | Clean drip pan; bi-annually clean coils and filter, with a technician for the condenser | Inspect for corrosion; check wiring; blow out drain line with air |
| Quantum | Clear debris around condensing unit; noise check; check drain line | Brush the P-trap; add a pan tab | Vacuum evaporator coil; technician services condenser | Inspect for corrosion; check wiring; bleach solution in drain line each spring |
| Blow-Through | Clear debris around condensing unit; noise check; check drain line | — | Clean drip pan; vacuum evaporator coil; technician services condenser; add a pan pad | Inspect for corrosion; check wiring; bleach solution in drain line each spring |
Pan tabs kill bacteria and odors and remove sludge and scale in the drip tray, and WhisperKOOL calls for one every six weeks on models like the Extreme, Phantom and Quantum. But the SC PRO and Slimline LS manuals say "DO NOT USE PAN TABS." Those units manage condensate differently, so check your manual before dropping anything into the tray.
How to Maintain a Wine Cellar Cooling System: Step by Step
Step 1: Clean the Evaporator and Condenser Coils
Coils are where heat moves in and out, so they matter most. With the power off, use a vacuum with a brush attachment and work gently in the direction of the fins. WhisperKOOL warns to "be careful not to crush coil fins." On the Slimline LS, WhisperKOOL also allows blowing out the coils with compressed air.
If an evaporator coil is very dirty, the SC PRO manual suggests spraying it with a little liquid dish detergent in water, waiting five minutes and then flushing with fresh water. On split systems, owners vacuum the indoor evaporator coil, and WhisperKOOL recommends that a certified HVAC-R technician service and clean the outdoor condenser coil.
Step 2: Clear the Drain Line and Drip Tray
A clogged drain is the most common cause of a leaking unit. Use the drain-line brush supplied with your unit, making several passes from both ends to remove scale and microbial growth. Every spring, WhisperKOOL recommends pouring a 50/50 bleach solution into the drain line. If your unit drains into a container, check monthly that the line sits above the waterline.
WhisperKOOL's maintenance checklists add one caution: "Do not introduce any foreign chemicals into the internal drain pan." Its FAQ also advises keeping drain lines accessible rather than concealed, so problems can be spotted early.
Step 3: Clean or Replace Filters
Filtered models trap dust before it reaches the coils. On the Phantom, WhisperKOOL calls for monthly filter checks, quarterly cleaning and replacement on ducted units. On the 2500 Cabinet, wash the filter in warm water, shake off the excess and gently vacuum the fins behind it. For ducted Quantum systems, WhisperKOOL recommends filters rated MERV 4 or better, and filters are not included with the unit.
Step 4: Care for the Bottle Probe
Every WhisperKOOL system controls temperature from a liquid-temperature bottle probe, so an accurate probe means accurate cooling. WhisperKOOL's checklists say to wipe the probe with a towel or rag and change the water inside its bottle. If the reading seems off, the SC PRO controller's CA1 setting can calibrate the probe to a known temperature, within a range of −12°F to +12°F.
Step 5: Keep the Outdoor Condensing Unit Clear (Split Systems)
Once a month, remove leaves, branches and debris from around the outdoor condensing unit. Blocked airflow outside has the same effect as a dirty coil inside, and the compressor has to work harder.
Step 6: Book the Annual Professional Inspection
WhisperKOOL recommends annual preventive maintenance by a licensed HVAC-R technician "in the spring or fall," ahead of the harsh temperatures of summer and winter. For split systems, the technician's checklist includes:
- voltage and amperage checks
- contactors and relays
- refrigerant pressures, superheat and subcooling
- the sight glass, which should show no bubbles and a "dry" moisture indicator
- controller probe temperatures
Wine Cellar Cooling Unit Troubleshooting: Common Problems and Fixes
Before calling for service, WhisperKOOL encourages owners to work through basic troubleshooting. The table below draws on the troubleshooting guides in WhisperKOOL's self-contained owner's manuals.
| Symptom | Common causes | What to do |
|---|---|---|
| Cellar is too warm | Intake air above the unit's limit; blocked airflow; poor door seal; setpoint too high; frosted coil; undersized unit | Keep SC PRO intake air below 85°F; remove obstructions; fix the door seal (see our vapor barrier and sealing guide); lower the setpoint; contact support if the compressor or fans won't run |
| Ice on the evaporator coil | Dirty coil; blocked supply or return air; evaporator fan off; low refrigerant | Vacuum or wash the coil; clear airflow; thaw with power off. Ice only part-way up the coil can point to low refrigerant, so call a technician |
| Unit leaks water | Unit not level; clogged or kinked drain line; no downward slope; frozen drip tray | Level the unit; brush and clear the drain; give the line a downward slope; thaw ice and dry the tray |
| Runs constantly | Leaky door seal or poorly insulated cellar | Repair the seal; insulate and vapor-seal the cellar to the manual's requirements |
| Runs but doesn't cool | Restricted airflow; compressor overheating; unit undersized | Clean the coil and clear the fan. If the compressor overheated, switch off for one hour, restart and clean the condenser coil. Call support if it repeats |
| Short cycling | Evaporator blowing on the bottle probe; low charge; faulty fan motor or capacitor | Move the bottle probe to a more central spot; call a technician for charge or electrical issues |
| Humidity too low | Not enough moisture in the cellar | On the SC PRO, raise the Fdc setting in steps of 5 (max 15) and wait three days between changes. The unit cannot add humidity |
What Do WhisperKOOL Alarm Codes Mean?
WhisperKOOL digital controllers display a code and sound a buzzer when something needs attention. The codes are not the same on every model. The SC PRO, Slimline LS and 2500 Cabinet use one set (for example E1, AH1 and COH). The Extreme ti uses another (P1, P2, HA, LA and POF). The circuit-board controllers on the Extreme tiR, Phantom, Platinum Split, Ceiling Mount, Quantum and Blow-Through use a third (for example E7, E10, EA and Ad2).
Our WhisperKOOL alarm codes guide explains every code by controller family, with the first steps each owner's manual recommends. Identify your model first, then look up the code.
Many "not cooling" calls aren't failures. The unit's exhaust side is simply too hot. Our store's specifications list the SC PRO and Slimline LS as holding 55°F with condenser intake air up to 85°F, while the Extreme and Phantom series handle intake air up to 110°F. If the room behind your unit runs hot in summer, clean coils won't be enough. See our guide to choosing between self-contained, split and ducted systems.
How Do You Know Your Maintenance Worked?
- The bottle probe holds setpoint with no AH1 or AL1 alarms. Depending on the model, these trigger at 4°F or 8°F from setpoint.
- The compressor cycles normally instead of running constantly or short cycling.
- Condensate drains freely. Moisture should be visible inside the drain line after the system runs, and there's no water in the tray or on the floor.
- The unit is quiet. A new rattle, hum or vibration is on WhisperKOOL's monthly checklist for a reason.
When Should You Call a Professional?
Call a licensed HVAC-R technician for:
- refrigerant questions, such as ice only part-way up the coil or a bubbling sight glass
- a compressor or fan that won't start
- repeated overheating or anti-frost alarms
- any split-system condenser service
WhisperKOOL Customer Service helps owners with basic troubleshooting Monday through Friday, 6:00 a.m. to 4:00 p.m. Pacific, and you'll need your model and serial number ready. As an authorized WhisperKOOL dealer, our specialists are also glad to help. Contact our cooling specialists for guidance, replacement parts or sizing help if your cellar has outgrown its system.
Wine Cellar Cooling Maintenance FAQs
How often should a wine cellar cooling unit be serviced?
WhisperKOOL recommends monthly owner checks, drain-line cleaning every six weeks on many models, quarterly coil and filter cleaning, and an annual inspection. The annual professional service is best scheduled in the spring or fall, before summer heat or winter cold. Split systems should have their condensing unit serviced by a licensed HVAC-R technician as part of that routine.
How do I clean my wine cellar cooling unit coils?
Disconnect power first. Then run a vacuum with a soft brush attachment gently along the coil fins, taking care not to bend them. For a very dirty evaporator coil, WhisperKOOL's SC PRO manual suggests a light spray of dish detergent and water, a five-minute wait, then a fresh-water rinse. Outdoor condenser coils on split systems should be cleaned by a technician.
Why is my wine cellar cooling unit leaking water?
Leaks usually mean condensate can't drain. The unit may not be level, or the drain line may be clogged, kinked or missing a downward slope. An iced coil can also freeze the drip tray so it overflows. Level the unit, brush out the drain line with the supplied brush and thaw any ice with the power off.
Why is my wine cellar cooling unit running but not cooling?
Restricted airflow is the most common cause: a dirty coil, a blocked fan or an overheated compressor. WhisperKOOL suggests switching the unit off for an hour to let the compressor cool, then cleaning the condenser coil. Also confirm the room behind the unit isn't above its intake limit. If the problem repeats, contact support.
Why does my wine cellar cooling unit have ice on the coil?
Ice forms when air can't move across the evaporator coil: the coil is dirty, supply or return air is blocked, or the evaporator fan isn't running. Thaw the coil with the power off and clean it. If ice covers only part of the coil face, WhisperKOOL notes the unit could be low on refrigerant, which requires a technician.
Can I use pan tabs in my WhisperKOOL drip tray?
It depends on the model. WhisperKOOL recommends a pan tab every six weeks for systems like the Extreme, Phantom and Quantum, and a pan tab or pad during quarterly service on the Platinum Split and Blow-Through. The SC PRO and Slimline LS manuals say not to use pan tabs. Always check your model's manual first.
Does skipping maintenance affect my WhisperKOOL warranty?
It can. WhisperKOOL's limited warranty makes cleaning dust and debris from the intake grilles and keeping the drain tube clean the owner's responsibility. It also excludes problems caused by failing to follow its maintenance requirements. Keeping a simple log of your cleaning dates is an easy way to protect both the unit and your coverage.
Does a wine cellar cooling unit control humidity?
No. WhisperKOOL units cool the cellar but do not add humidity. On the SC PRO, the Fdc setting keeps the fan running after the compressor stops, returning some condensed moisture to the room, which can help if humidity runs low. A complete vapor barrier and a sealed door do most of the work of keeping humidity in range.
Key Takeaways: Wine Cellar Cooling Unit Maintenance
- Follow your series' schedule. Most WhisperKOOL manuals call for monthly checks, six-week drain cleaning, quarterly coil and filter cleaning and an annual inspection.
- Clean coils prevent the most common failures. A dirty condenser coil can trigger the SC PRO's COH alarm at 125°F and stop cooling entirely.
- Keep the drain clear. Brush it with the supplied tool, flush with a 50/50 bleach solution each spring, and use pan tabs only on models that call for them.
- Split systems need a technician. Platinum Split, Ceiling Mount, Quantum and Blow-Through condensers should be serviced by a licensed HVAC-R technician each spring or fall.
- Respect the heat-side limit. If the room behind your unit exceeds 85°F, an SC PRO will struggle. The Extreme series handles intake air up to 110°F.
New to the terminology? Our wine cellar cooling glossary explains more than 95 WhisperKOOL terms in plain English, and the WhisperKOOL alarm codes guide decodes every display message by controller.
Keep Your WhisperKOOL Running for Years
Need a manual, a replacement part or help deciding whether your cellar has outgrown its system? Our cooling specialists are here to help.
Find your WhisperKOOL manual Get expert help Shop WhisperKOOL systems
Sources and References
- WhisperKOOL owner's manuals (maintenance schedules, troubleshooting guides and alarm codes) for the SC PRO, Slimline LS, Extreme ti/tiR, Phantom, 2500 Cabinet, Platinum Split, Ceiling Mount, Quantum and Blow-Through series.
- WhisperKOOL maintenance checklists for each series, including HVAC-R technician inspection points for split systems.
- WhisperKOOL, Annual Maintenance Program.
- WhisperKOOL, Frequently Asked Questions.
- WhisperKOOL, Wine Cellar Temperature: What It Should Be & Why It Matters.
- WhisperKOOL, Understanding Wine Cellar Humidity and Condensate.
- Arapitsas, P. et al. (2014). The influence of storage on the "chemical age" of red wines. Metabolomics, 10(5).
- Heat-side intake limits: WhisperKOOL product pages on winecellarcoolingunits.com (September 2026).
