Quick Answer: Which Wine Cellar Cooling System Should You Choose?
The choice between self-contained, split, and ducted wine cellar cooling comes down to one engineering question: where does the heat go, and how quietly and invisibly can it get there? WhisperKOOL, the California manufacturer behind every system on winecellarcoolingunits.com, builds all three architectures. Every one of them is designed to hold a cellar at the industry-standard 55°F.
Self-contained through-the-wall units like the WhisperKOOL SC PRO 4000 (2,253 BTU/h, 115V, up to 1,000 cu. ft.) cost the least to install. However, the SC PRO needs condenser air no warmer than 85°F.
The Extreme and Phantom series hold 55°F with condenser intake air up to 110°F. Split systems like the WhisperKOOL Platinum Split move the compressor up to 100 line-feet away, which suits the quietest and most architectural builds.
Our cooling specialists recommend a professional heat-load calculation before you choose, because insulation, glass and the ambient temperature can change the answer more than cubic footage.
Before an architect specifies a single rack or finish, the cooling system has already shaped the cellar. It sets the wall openings, the electrical service, the mechanical room and the acoustic experience of the space. This beginner's guide explains the wine science behind cellar cooling and compares the three WhisperKOOL system architectures using live specifications from our store, so you can specify a system that protects the collection for decades.
Wine Cellar Cooling Basics: How Temperature and Humidity Affect Wine
A cooling system is only as good as the environment it creates. Four principles explain why wine cellar cooling is engineered differently from ordinary air conditioning.
What Temperature Should a Wine Cellar Be?
WhisperKOOL states that the industry standard for wine storage is 55°F (13°C). That temperature slows chemical aging to a controlled pace, preserves aroma and flavor compounds, prevents premature oxidation and maintains cork integrity. Wine Spectator gives an acceptable range of 45°F to 65°F and calls 55°F "close to perfect."
Above roughly 65°F, WhisperKOOL warns of accelerated aging, flattened flavors, lost complexity and the risk of "cooked" wine.
Why Does Temperature Stability Matter More Than the Exact Setting?
Temperature swings do more damage than a few degrees of offset. WhisperKOOL puts it plainly: "A steady 58°F is far better than a cellar swinging between 50°F and 65°F." When temperatures fluctuate, the wine expands and contracts inside the bottle. That pushes air in and out through the cork, which speeds up oxidation.
This is why every WhisperKOOL system on our store uses a liquid-temperature-measuring bottle probe. The probe controls the unit based on the temperature of the wine itself, not the faster-moving air around it.
How Does Storage Temperature Affect Wine Aging?
Wine aging is a set of chemical reactions, and chemical reactions speed up as temperature rises. Research makes the effect concrete. In a study published in Metabolomics (Arapitsas et al., 2014), 20 Sangiovese wines were stored for two years in either cellar conditions or typical house conditions. The house-stored wines developed about four times faster. After just six months, they had reached a composition similar to cellar-stored wines at two years.
For a collector, a warm, unstable room effectively shortens the drinking window of every bottle.
What Humidity Should a Wine Cellar Have?
WhisperKOOL notes that most cellars are designed for about 55°F and 50–70% relative humidity. That range keeps corks from drying out without encouraging mold. WhisperKOOL's dew-point guidance targets roughly 55–60% RH. For example, a cellar at 55°F and 55% RH has a dew point of about 39°F.
WhisperKOOL units cool the cellar; they do not regulate humidity. As they cool, moisture condenses on the coil and leaves through the drain line. WhisperKOOL says this approach conserves more of the cellar's moisture than a traditional air conditioner would.
What Is Heat Load? Sensible vs. Latent Cooling and Insulation R-Values
Sensible vs. latent cooling capacity
You will see two BTU figures on many WhisperKOOL split-system spec sheets:
- Sensible capacity is the heat removed to lower the air temperature.
- Total capacity also includes latent heat, the energy spent condensing moisture.
WhisperKOOL explains that an overly humid cellar forces the system to do more latent cooling. Uncontrolled moisture intrusion can increase runtime by 10–20%.
Minimum insulation and vapor barrier requirements
The building envelope matters just as much. WhisperKOOL's FAQ recommends at least R-13 insulation on interior walls, with higher values for exterior walls, ceilings and warm environments. Our product pages also call for R-19 minimum and a complete vapor barrier on the warm side of the insulation to achieve the rated cellar sizes. Our wine cellar vapor barrier guide shows exactly where it goes and how to install it.
WhisperKOOL describes every BTU/h figure as theoretical. Glass, stone or concrete construction can require a larger unit than the baseline suggests, and WhisperKOOL warns that an undersized unit "can lead to premature failure." Room dimensions alone ignore insulation, glass, ambient temperature and ventilation. Our cooling specialists recommend a free, personalized heat-load calculation before you order.

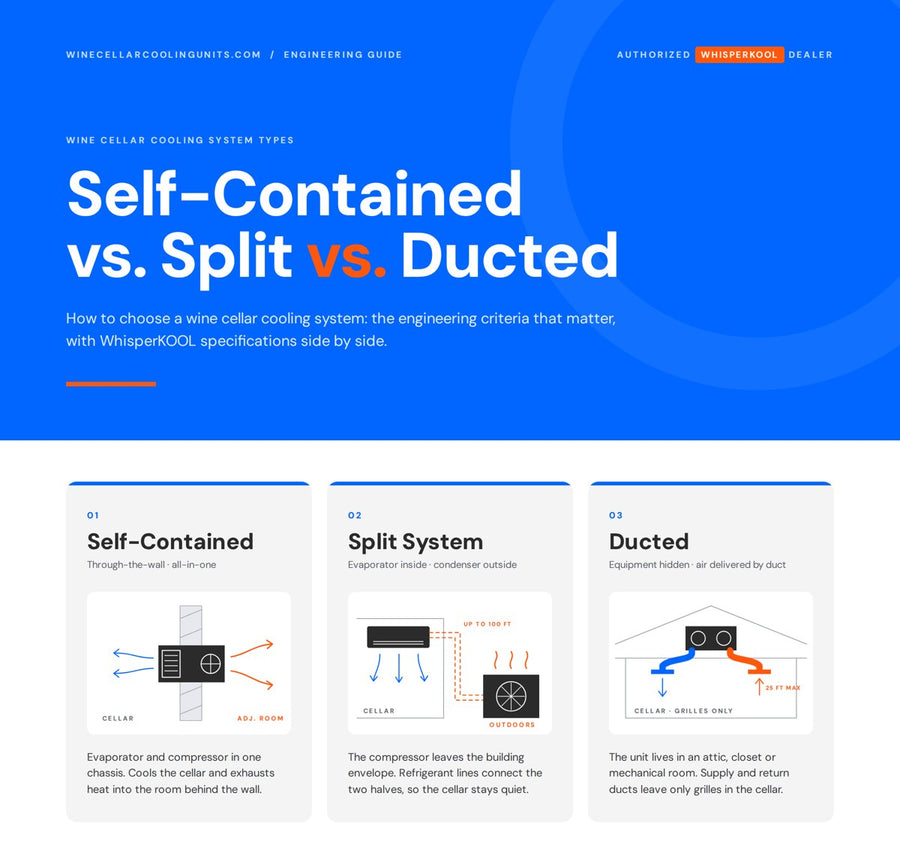

What Are the Three Types of Wine Cellar Cooling Systems?
Every refrigeration system has two sides:
- The evaporator absorbs heat from the cellar.
- The condenser (with the compressor) rejects that heat somewhere else.
The three wine cellar cooling system types differ in where those two sides live and how the air moves between them.
What Is a Self-Contained (Through-the-Wall) Wine Cellar Cooling Unit?
WhisperKOOL defines a self-contained system as one with "all major refrigeration components in one unit, including the evaporator and compressor." The unit sits in a wall opening. It blows cool air into the cellar and exhausts warm air into the adjacent room.
Self-contained units are typically the most economical and the easiest to install. WhisperKOOL notes that some self-contained systems can be installed without a licensed HVAC-R technician, as long as all installation instructions are followed exactly.
WhisperKOOL self-contained series
- SC PRO series
- Slimline LS
- Extreme ti/tiR series
- 2500 Cabinet system for wine cabinets
What Is a Split System Wine Cellar Cooling Unit?
A split system wine cellar cooling unit is, in WhisperKOOL's words, "made up of two separate components: the evaporator and the condensing unit." The evaporator sits in or near the cellar. The condenser is installed remotely, outdoors or in a garage, and refrigerant lines connect the two. On WhisperKOOL's Platinum Split, Ceiling Mount and Quantum systems, the condenser can sit up to 100 line-feet from the evaporator.
Because the compressor, which makes most of the noise and heat, leaves the building envelope, split systems are the architect's tool for quiet, discreet cellars. They require a licensed HVAC-R technician.
WhisperKOOL split system series
- Platinum Split (wall-mounted or ducted)
- Ceiling Mount
- Quantum
- Blow-Through concealed systems
What Is a Ducted Wine Cellar Cooling System? (Ducted vs. Ductless)
"Ducted" describes airflow rather than a third type of refrigeration. Cool air reaches the cellar through supply ducts, and warm air returns through return or exhaust ducts, so the equipment can sit in an attic, closet or mechanical room. WhisperKOOL notes that most systems can be ducted up to 25 feet, and cooling capacity decreases as duct length grows because of airflow resistance.
WhisperKOOL ducted options
WhisperKOOL offers ducting in both architectures:
- Fully ducted self-contained: Phantom and Fully Ducted Extreme tiR.
- Ducted split: Platinum Split Ducted, Quantum and Blow-Through.
A ductless system mounts the evaporator directly in the cellar. That is simpler and more efficient, but the unit stays visible.
Self-Contained vs. Split vs. Ducted Wine Cellar Cooling: Comparison Chart
The table below compares the four ways WhisperKOOL applies the three system types. Each attribute comes from WhisperKOOL documentation or our live product pages.
| Engineering criterion | Self-contained (through-the-wall) | Fully ducted self-contained | Ductless split | Ducted split |
|---|---|---|---|---|
| Where heat is rejected | Room directly behind the cellar wall | Attic or utility room, via ducts | Remote condenser (outdoors or garage) | Remote condenser (outdoors or garage) |
| Max remote distance | None (unit sits in the wall) | Up to 25 duct feet | Condenser up to 100 line-feet | Up to 25 duct feet + 100 line-feet |
| Condenser-side temperature limit | SC PRO / Slimline LS: 85°F intake. Extreme ti: 110°F intake | Phantom & Extreme tiR: 110°F intake | Outdoor condenser rated from −20°F (see series table) | Outdoor condenser rated from −20°F (see series table) |
| In-cellar sound | Compressor in the cellar wall (no dBA published) | Quiet: WhisperKOOL recommends it where quiet is a priority | Evaporators as low as 48 dBA | Quietest. Platinum Split Ducted evaporator ~42 dBA |
| Visibility | Grille visible in cellar wall | Only supply and return grilles visible | Evaporator visible on wall or ceiling | Only grilles visible (fully concealed) |
| Installer | Some models suitable for a careful DIY install | Licensed HVAC-R technician | Licensed HVAC-R technician | Licensed HVAC-R technician |
| WhisperKOOL series | SC PRO, Slimline LS, Extreme ti/tiR | Phantom, Fully Ducted Extreme tiR | Platinum Split (wall), Ceiling Mount, Blow-Through (ductless kit) | Platinum Split Ducted, Quantum, Blow-Through (ducted kit) |
WhisperKOOL notes that exhaust air from a cooling unit commonly reaches 90–100°F. If that exhaust will vent into a space that stays at 78°F or higher, WhisperKOOL advises using an Extreme Series unit or a split system. In other words, the room behind the cellar wall is as much a part of the design as the cellar itself.
WhisperKOOL Wine Cellar Cooling Specs by Series: BTU, Voltage, Cellar Size and Warranty
These figures come from our live product pages and match WhisperKOOL's published spec sheets. BTU/h values are rated at an 85°F condenser air intake. Split-system figures are sensible capacity with the 220V H.E. condenser.
| WhisperKOOL series | System type | Capacity (BTU/h) | Rated cellar size | Voltage | Warranty |
|---|---|---|---|---|---|
| SC PRO 2000–8000 | Self-contained, through-the-wall (partially ducted) | 1,453–4,241 | 300–2,000 cu. ft. | 115V; 15-amp (2000–4000) or 20-amp (8000) dedicated circuit | 2-yr limited + 5-yr compressor |
| Slimline LS | Self-contained, through-the-wall above the door | 2,612 total (2,158 sensible) | Up to 650 cu. ft. | 115V, 15-amp | 2-yr limited + 5-yr compressor |
| Extreme 3500–8000 ti/tiR | Self-contained, through-the-wall | 3,175–6,131 | 800–2,000 cu. ft. | 115V, 20-amp (230V subject to availability) | 2-yr limited + 5-yr compressor |
| Fully Ducted Extreme tiR | Fully ducted self-contained | 2,688–5,760 | 800–2,000 cu. ft. | 115V, 20-amp | 2-yr limited + 5-yr compressor |
| Phantom 3500–8000 | Fully ducted self-contained | 4,060–6,025 | 800–2,000 cu. ft. | 115V, 20-amp | 2-yr limited + 5-yr compressor |
| 2500 Cabinet | Self-contained, cabinet-mount | 1,534–1,719 total | Wine cabinets | 120V, 15-amp | 2-yr limited + 5-yr compressor |
| Platinum Split (Mini–Twin) | Split, wall-mounted or ducted | 1,666–7,779 sensible | 500–3,000 cu. ft. | 120V evaporator; 110V OMEGA or 220V H.E. condenser | 2-yr limited (split) |
| Ceiling Mount (Mini–Twin) | Ductless split, ceiling-mounted | 2,084–10,268 sensible | 500–3,000 cu. ft. (Twin 12000 rated by BTU) | 120V evaporator; 110V OMEGA or 220V H.E. condenser | 2-yr limited (split) |
| Quantum SS9000–SS24000 | Ducted split | 10,145–21,519 sensible | 3,000–4,000 cu. ft. (Twins rated by BTU) | 120V evaporator; 220V condenser | 2-yr limited (split) |
| Blow-Through (Mini, 4000, 8000) | Concealed split: ducted, ductless or hybrid | 2,198–5,544 (theoretical range) | Varies by airflow configuration | 120V evaporator; 110V OMEGA or 220V H.E. condenser | 2-yr limited (split) |
How Does the WhisperKOOL Warranty Differ for Self-Contained and Split Systems?
- Self-contained units: WhisperKOOL offers a limited 2-year product warranty, up to an additional 6-month grace period for installation, and a 5-year compressor warranty.
- Split systems: WhisperKOOL offers a limited 2-year product warranty with up to an additional 1-year grace period for installation. Coverage is not activated until a Product Warranty Checklist has been submitted to and approved by WhisperKOOL.
How to Choose a Wine Cellar Cooling System: 6 Engineering Criteria
Work through these criteria in order. Each one narrows the field.
1. Where Will the Cooling Unit Exhaust Its Heat?
Start with the room on the other side of the cellar wall:
- A conditioned interior space that stays below 85°F: the SC PRO series fits. WhisperKOOL says the SC PRO's condenser intake should not exceed 85°F to hold 55°F, which makes interior installations ideal.
- A garage, exterior wall or warm utility room: the Extreme series holds 55°F with condenser intake air up to 110°F.
- No suitable adjacent space at all: choose a split system, which moves the heat outdoors.
2. How Quiet Does the Wine Cellar Need to Be?
For tasting rooms and cellars that open onto living spaces, WhisperKOOL recommends fully ducted self-contained and ducted split systems where quiet is a priority. WhisperKOOL's spec sheets list the ducted Platinum Split evaporator as low as 42 dBA at 6 feet. Ceiling Mount and wall-mounted Platinum evaporators are listed as low as 48 dBA, and the 220V H.E. condenser outside at about 45 dBA.
3. What Electrical Service Does a Wine Cellar Cooling Unit Need?
- Self-contained: SC PRO 2000, 3000 and 4000 units require a 115V, 15-amp dedicated circuit; the SC PRO 8000 and Extreme units require 115V, 20-amp. The Slimline LS requires a 115V, 15-amp dedicated circuit.
- Split: the evaporator needs a 120V, 15-amp circuit, plus a condenser circuit. You can choose the 110V H.E. OMEGA or the 220V Advanced H.E. condenser, both on 15-amp dedicated circuits.
4. How Well Insulated and Sealed Is the Cellar?
Rated cellar sizes assume a fully insulated room with a proper vapor barrier. Glass walls, masonry and high ambient temperatures push the heat load up. That can move you into a larger model or a split system with more capacity headroom, such as the Quantum SS12000 (up to 4,000 cu. ft.).
5. Can You Install It Yourself, or Do You Need an HVAC-R Technician?
If you want to install it yourself, a self-contained through-the-wall unit is the practical route. Split and ducted systems must be installed, commissioned and charged by a licensed HVAC-R technician. WhisperKOOL states that installation by an unqualified party voids the warranty.
6. Should the Cooling System Be Visible or Concealed?
For fully concealed installations in soffits, wine walls and custom millwork, the WhisperKOOL Blow-Through 4000 supports ducted, ductless or hybrid airflow, with duct runs up to 25 feet and coil service from either side. For a fully hidden self-contained design, the Phantom series installs in an attic or utility room. Its blowers can be reconfigured to exit right, left or top.
Which Wine Cellar Cooling System Is Best for Your Project?
| Project scenario | Recommended system type | WhisperKOOL starting point | Why |
|---|---|---|---|
| Basement cellar next to a conditioned room, about 600 cu. ft. | Self-contained, through-the-wall | SC PRO 3000 (2,049 BTU/h, ~650 cu. ft.) | The adjacent room stays below 85°F, so the simplest install works |
| Cellar backing onto a garage, about 1,200 cu. ft. | Self-contained, high-ambient | Extreme 5000ti (4,126 BTU/h, up to 1,250 cu. ft.) | Rated for condenser intake air up to 110°F |
| Glass-front showpiece cellar off the great room | Ducted split | Platinum Split 4000 Ducted or 8000 Ducted | Only grilles are visible, the compressor is outdoors and it runs quietly |
| Wine wall or cabinetry with a soffit | Concealed split (hybrid or ducted) | Blow-Through 4000 | Designed for soffits, wine walls and custom millwork |
| Attic space available above the cellar, no 220V service planned | Fully ducted self-contained | Phantom 5000 or Fully Ducted Extreme 5000tiR | Hidden equipment on a 115V circuit, up to 25 duct feet away |
| Collector's cellar, 3,000+ cu. ft. | Ducted split, high capacity | Quantum SS9000 / SS12000 | WhisperKOOL's largest-capacity split platform, with 14" supply and return ducts |
Wine Cellar Cooling Advice for Architects and Designers
Specify the system at the framing stage. This includes wall openings, line-set chases, duct routes, condensate drain paths and dedicated circuits. A ducted split system gives you the cleanest finished result.
Wine Cellar Cooling Advice for Wine Collectors
The stability argument matters most. A properly sized system with bottle-probe control protects decades of aging potential, and it scales from an SC PRO to a Quantum as the collection grows.
Common Wine Cellar Cooling Mistakes to Avoid
- Sizing by cubic feet alone. Rated sizes assume an insulated, vapor-sealed room. Glass and masonry cellars need a real heat-load calculation.
- Exhausting a self-contained unit into a hot or closed space. SC PRO and Slimline LS units need condenser air at or below 85°F. Choose the Extreme series or a split system for warmer rooms.
- Skipping the vapor barrier. Without one, WhisperKOOL notes, moisture migrates into the cellar, and the system spends energy on latent cooling instead of temperature control.
- Concealing the drain line. WhisperKOOL says the drain line must always be connected and should stay accessible, and it recommends against concealing drain lines.
- Running ducts too long. Capacity drops as duct length grows. Stay within the 25-foot guidance.
- Forgetting the warranty checklist on a split system. Coverage is not active until WhisperKOOL approves the Product Warranty Checklist.
Expert Wine Cellar Cooling Tips for Architects and Collectors
On split systems, WhisperKOOL's spec sheets rate the 220V H.E. condenser from −20°F to 120°F and as low as 45 dBA. The 110V H.E. OMEGA condenser is rated from −20°F to 110°F and can go in a closet, attic, crawl space, on a concrete pad or under the stairs. Match the condenser to the site first, then place it within 100 line-feet of the evaporator.
- Put the bottle probe where the wine is. The probe reads liquid temperature, so place it among the bottles rather than near a door or supply grille.
- Size a little above the calculated minimum. WhisperKOOL recommends buying a unit with capacity above the calculated minimum. Twin configurations (Platinum Split Twin, Ceiling Mount Twin) add capacity for large rooms.
- Plan service access. Ducted and concealed equipment still needs maintenance. The Blow-Through series was designed with a removable coil and service access from either side.
- Keep the documentation on file. Download owner's manuals and spec sheets from our WhisperKOOL manuals and product documentation library for your drawing set and the homeowner's binder.
Next Steps: How to Specify Your WhisperKOOL Cooling System
- Measure the cellar and document the wall, ceiling and glass construction, including R-values and the vapor barrier. Our vapor barrier and insulation guide walks through the envelope step by step.
- Identify where the heat can go: the adjacent room, an attic or utility room, or outdoors.
- Confirm the available electrical service (115V/120V, 220V).
- Request a free heat-load calculation from our cooling specialists.
- Browse the matching WhisperKOOL category: through-the-wall self-contained, fully ducted self-contained, ductless split or ducted split.
- Once it's installed, keep it running with our WhisperKOOL maintenance and troubleshooting guide. If your controller ever shows a code, the WhisperKOOL alarm codes guide explains it by model.
- Unsure what a spec-sheet term means? Look it up in our wine cellar cooling glossary.
Wine Cellar Cooling System FAQs
What is the difference between a self-contained and a split wine cellar cooling system?
A self-contained system houses the evaporator and compressor in one unit that usually mounts through a wall and exhausts heat into the next room. A split system separates them: the evaporator stays in or near the cellar, and the condenser is installed remotely, outdoors or in a garage. WhisperKOOL split systems allow up to 100 line-feet between the two, which makes the cellar quieter.
Is a ducted or ductless wine cooling system better?
Neither is universally better; it depends on the design goal. Ductless evaporators mount directly in the cellar and are simpler and more efficient. Ducted systems hide the equipment in an attic, closet or mechanical room, leaving only grilles visible, and WhisperKOOL recommends them when quiet is a priority. Keep duct runs within about 25 feet, because capacity drops as length increases.
Can I install a wine cellar cooling unit myself?
Sometimes. WhisperKOOL says some self-contained systems, such as through-the-wall units, can be installed without a licensed HVAC-R technician if every instruction is followed exactly. Split and ducted configurations must be installed by a licensed HVAC-R technician because of refrigerant handling, electrical requirements and commissioning. An unqualified installation of a split system voids the warranty.
What temperature and humidity should a wine cellar be kept at?
WhisperKOOL cites 55°F (13°C) as the industry standard. Most cellars are designed for roughly 50–70% relative humidity, and WhisperKOOL's dew-point guidance targets about 55–60%. Stability matters more than hitting an exact number: a steady 58°F beats a cellar swinging between 50°F and 65°F, because temperature swings push air through the cork and speed up oxidation.
Where does a through-the-wall wine cooling unit exhaust its heat?
It exhausts into the room on the other side of the cellar wall, and that air commonly reaches 90–100°F. The WhisperKOOL SC PRO needs condenser intake air at or below 85°F to hold a 55°F cellar. If the exhaust space stays at 78°F or higher, WhisperKOOL recommends an Extreme Series unit, rated for intake air up to 110°F, or a split system.
Do WhisperKOOL units control humidity?
No. WhisperKOOL units are cooling systems and do not regulate humidity. As they cool, moisture condenses on the coil and drains away. WhisperKOOL says this conserves more cellar moisture than a traditional air conditioner does. To keep humidity in range, install a complete vapor barrier, seal penetrations and doors, and keep the drain line connected and accessible.
How do I size a wine cellar cooling system?
Use a heat-load calculation, not cubic footage alone. Rated cellar sizes assume a fully insulated room with a proper vapor barrier. Glass, stone, concrete, high ambient temperatures and frequent door openings all add heat load. WhisperKOOL recommends buying capacity above the calculated minimum, because an undersized unit can fail early. Our specialists offer a free heat-load calculation.
What warranty comes with WhisperKOOL cooling systems?
WhisperKOOL self-contained units carry a limited 2-year product warranty, up to an additional 6-month grace period for installation, and a 5-year compressor warranty. Split systems carry a limited 2-year product warranty with up to an additional 1-year installation grace period. Split coverage activates only after WhisperKOOL approves the Product Warranty Checklist, which the installing technician submits after installation.
Key Takeaways: Self-Contained vs. Split vs. Ducted Cooling
- Choose the architecture by where the heat goes. An interior room at 85°F or below suits the WhisperKOOL SC PRO (1,453–4,241 BTU/h). Warm rooms up to 110°F call for the Extreme series (3,175–6,131 BTU/h).
- For the quietest, most architectural cellars, specify a ducted split. The Platinum Split Ducted puts the compressor up to 100 line-feet away, and its evaporator is listed as low as 42 dBA.
- To hide the equipment on a 115V circuit, use a fully ducted self-contained unit. The Phantom (4,060–6,025 BTU/h) and Fully Ducted Extreme tiR (2,688–5,760 BTU/h) install up to 25 duct feet away.
- Large collections scale to the Quantum. The Quantum SS9000/SS12000 is rated for 3,000–4,000 cu. ft., and Twin models run up to 21,519 BTU/h sensible.
- Stability protects aging. Hold 55°F and 50–70% RH, use bottle-probe control, and build to R-13 or better (R-19 for rated sizes) with a warm-side vapor barrier.
- Size by heat load. Request a free calculation before ordering.
Get Help Choosing Your WhisperKOOL Wine Cellar Cooling System
Whether you are detailing a new cellar or upgrading a collection, our cooling specialists will help you match the architecture, capacity and condenser to your project.
